LINK™ – DV

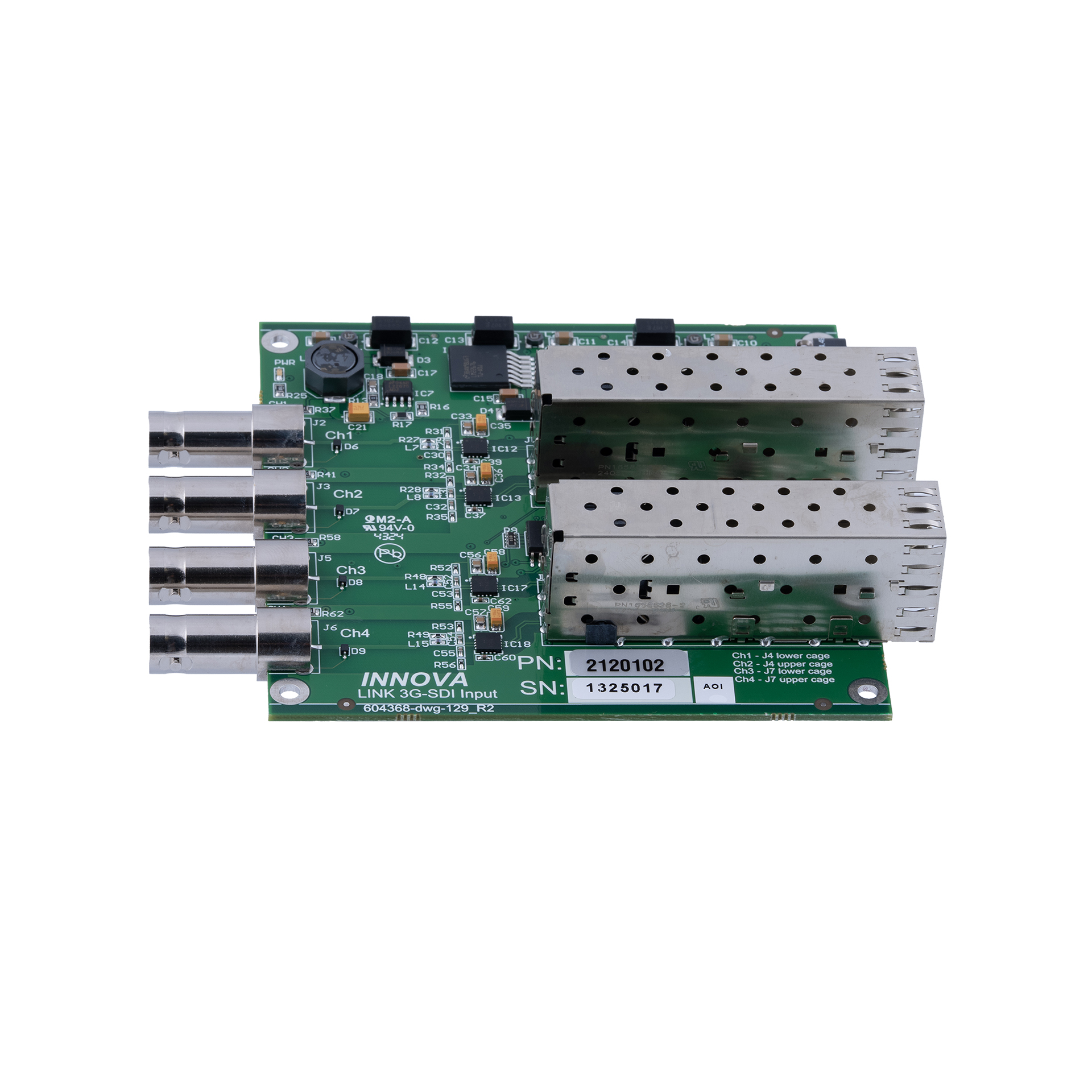

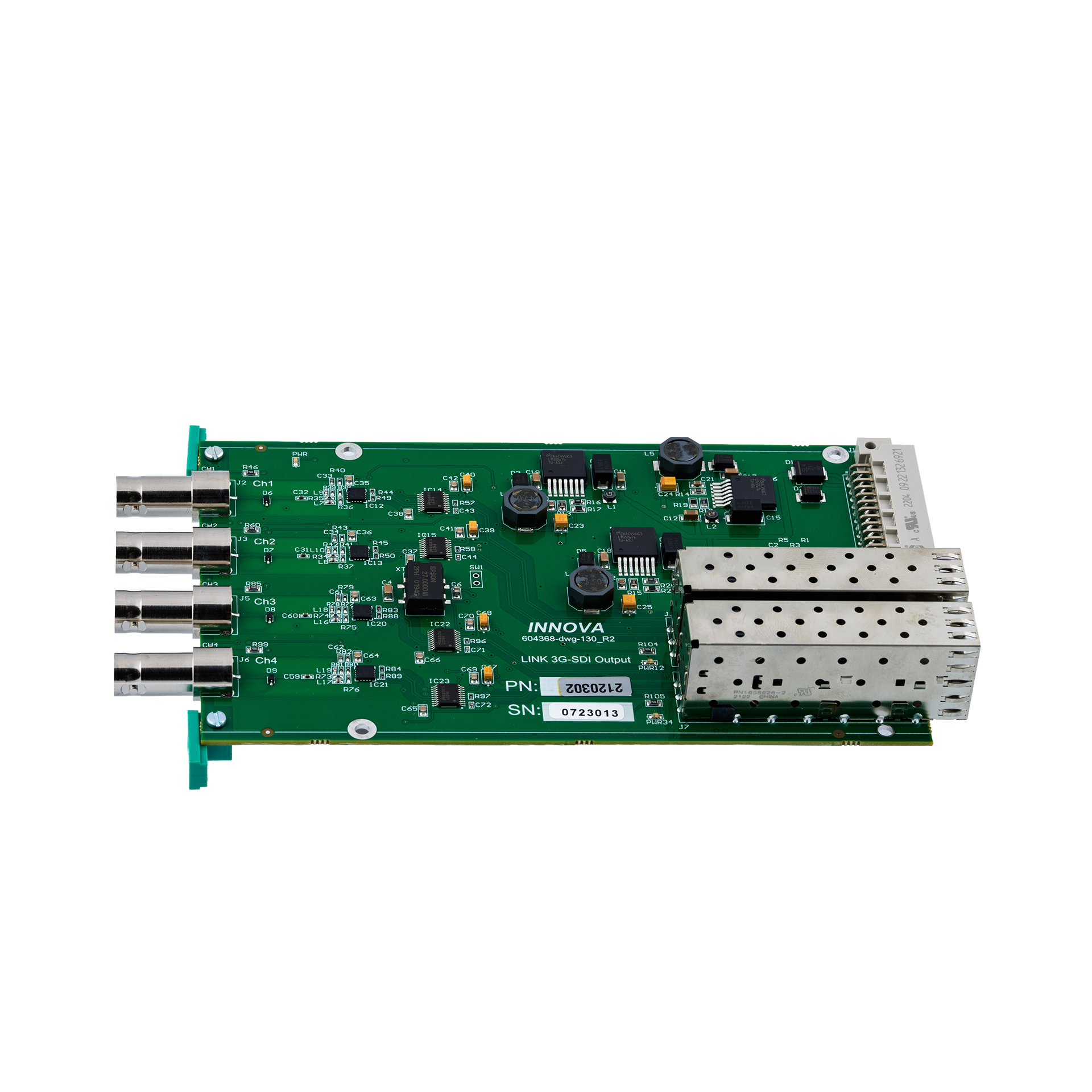

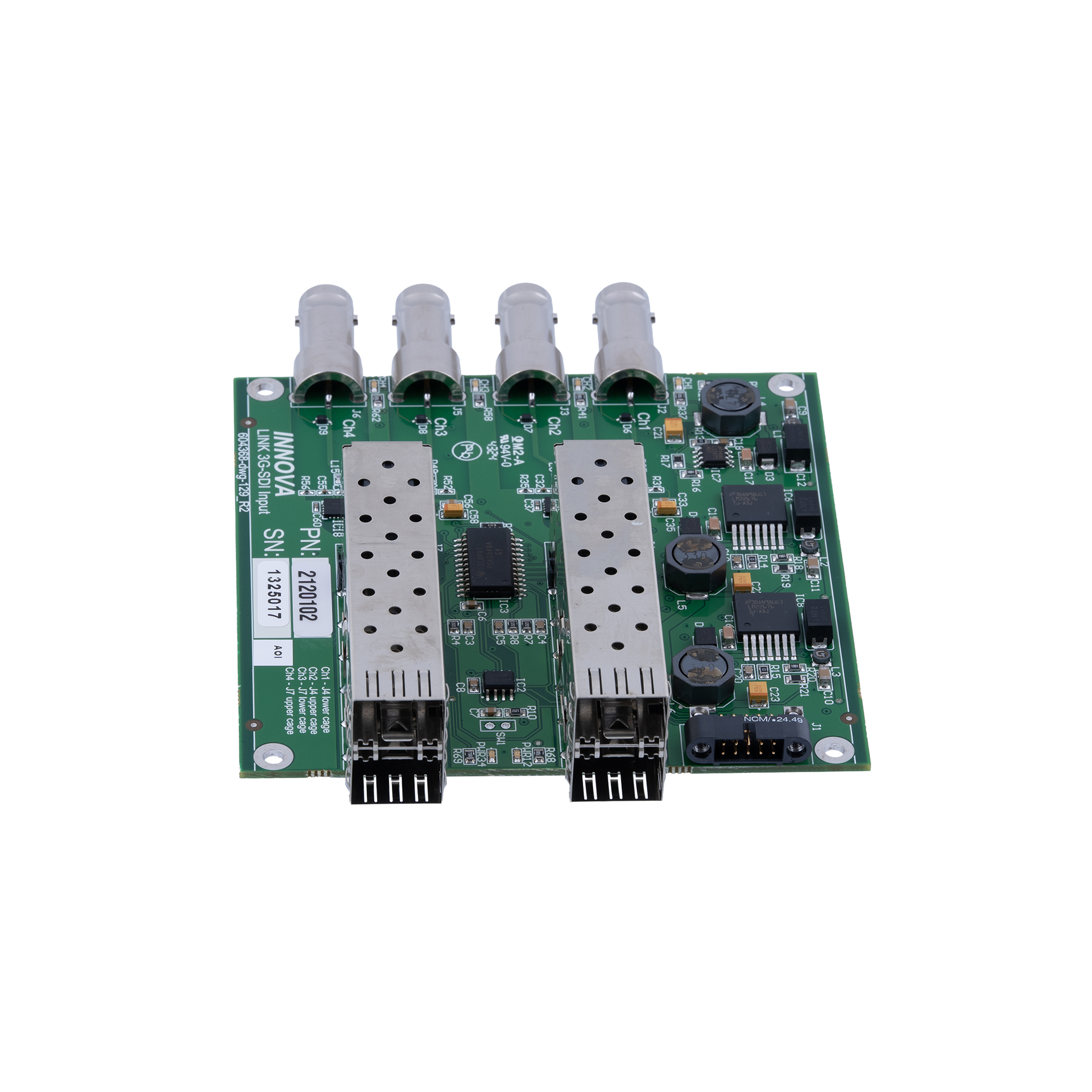

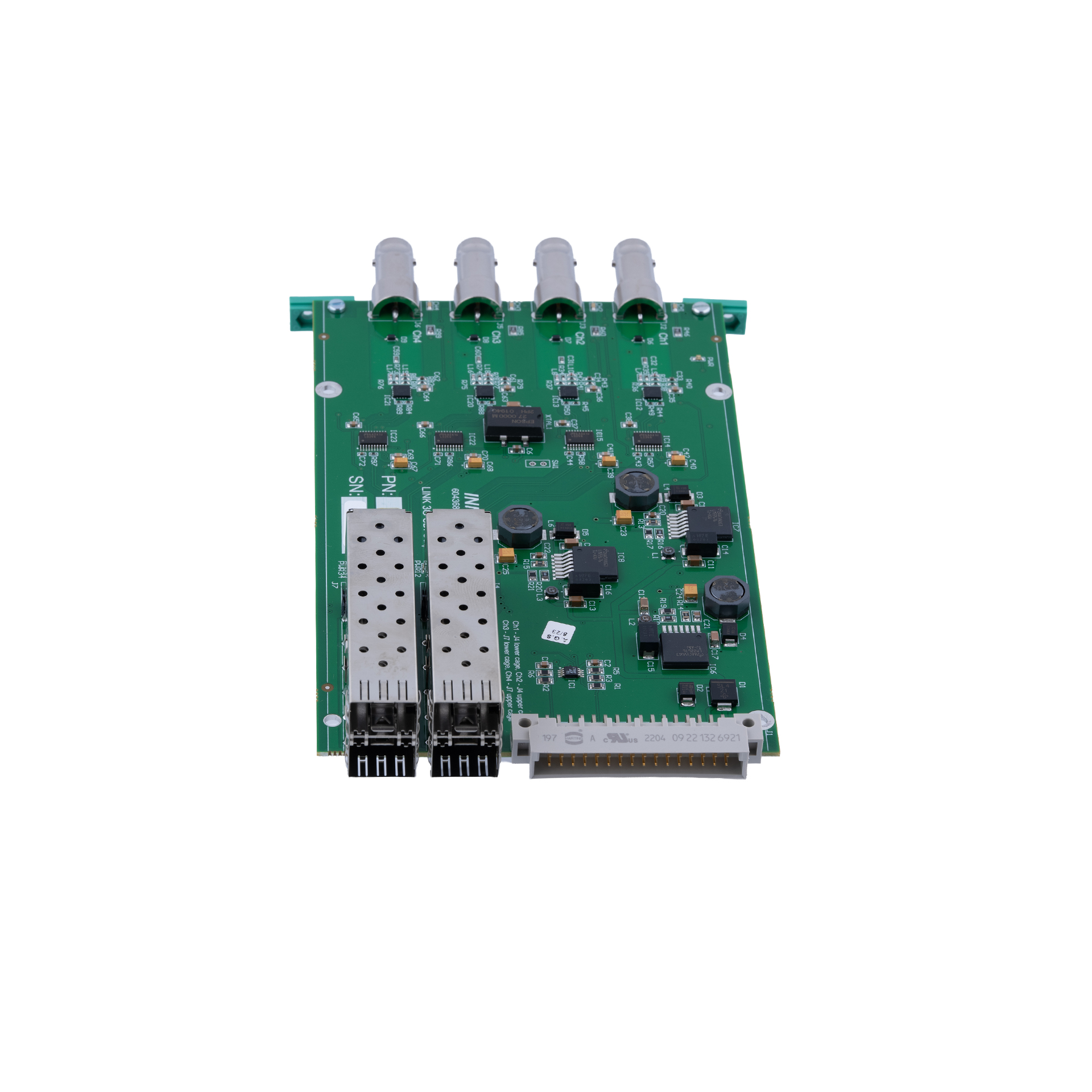

The Innova Link Digital Video board solves the problem of integrating multiple digital video cameras to ROVs and other remotely controlled systems by providing up to 4 digital video channels (HD-SDI) on one board.
Description
The system can be used stand-alone or combined with other products in the Innova Link family, including Analogue Video and Serial communication, Ethernet and PECL.
The design is based on Innova’s long experience with remotely operated vehicle systems and provides a wide range of features, including;
• Digital Video format: HD-SDI, 3G-SDI (SMPTE-424M, SMPTE-292M, SMPTE-259M)
• Up to four video channels on each board. One fiber channel required per video channel
• Standard BNC connectors
• Pressure tolerant electronics and optics option
• Single mode and multi mode fibre options
• Self test and diagnostics functionality (distributed to the AV board)
• Can be combined with other boards in the Link Family with the use of CWDM optical multiplexers
